Front View Camera Variant Coding

Information

• Front view camera variant coding makes it possible to operate functions for each vehicle type.
• If the variant coding differs from the vehicle specification, the "variant coding error" DTC is displayed.

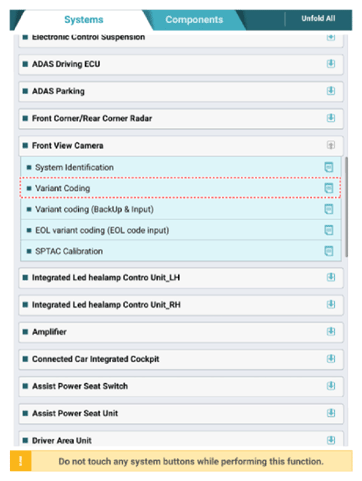

1. If the front view camera unit is replaced with a new one, perform the "VARIANT CODING " procedure using diagnostic tool.

   Courtesy of HYUNDAI MOTOR AMERICA

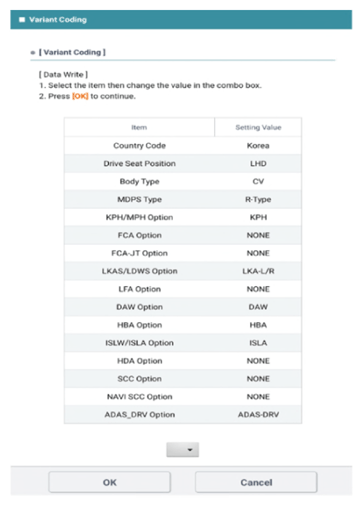

2. Enter the specification value read from the existing camera into the new front camera.

   Courtesy of HYUNDAI MOTOR AMERICA
