Sensor Data Diagnosis With Diagnostic Tool

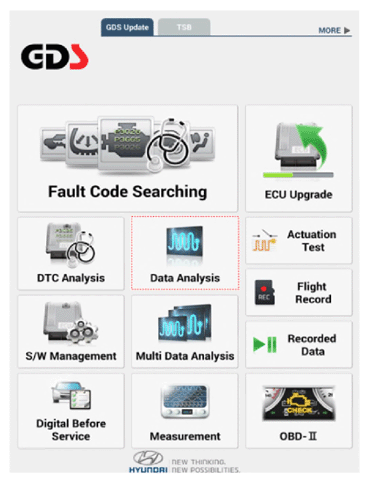

  1. Select the 'Data Analysis'.
    G15473593Courtesy of HYUNDAI MOTOR AMERICA

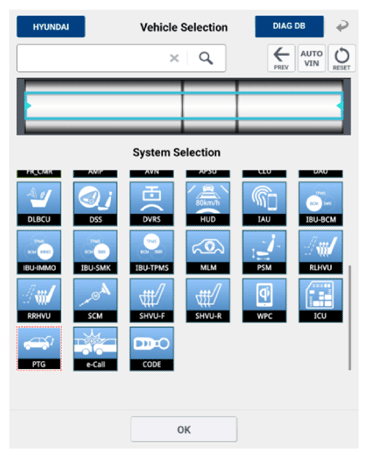

  2. Select the 'PTG'.
    G15473594Courtesy of HYUNDAI MOTOR AMERICA
  3. Check the sensor data.
