Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

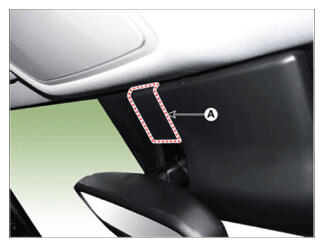

  2. Remove the mirror wiring cover (A).
    G16195263Courtesy of HYUNDAI MOTOR AMERICA

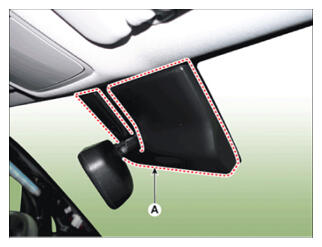

  3. Remove the front view camera cover (A).
    G16195264Courtesy of HYUNDAI MOTOR AMERICA

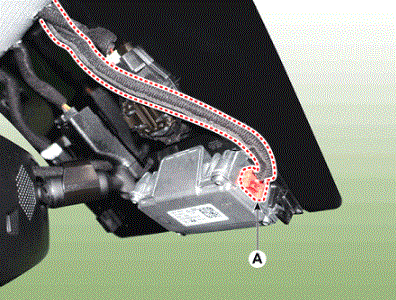

  4. Disconnect the front view camera connector (A).
    G16195265Courtesy of HYUNDAI MOTOR AMERICA

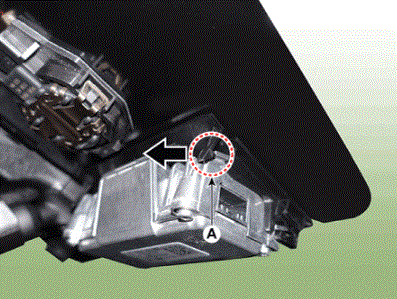

  5. Press the lock pin (A) and remove the front view camera.
G16195266Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • When separate the fixed points, be careful not to damage it.
