Power Window Main Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the power window switch connector (A).

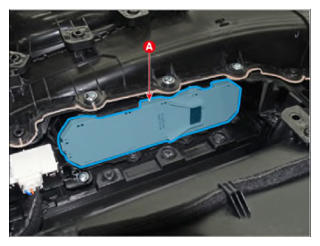

  4. Disengage the mounting clip and then remove the power window switch assembly (A).
G15463070Courtesy of HYUNDAI MOTOR AMERICA
