Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

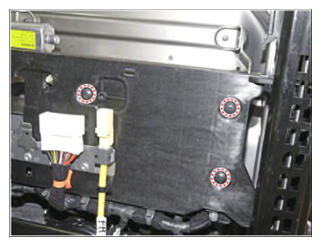

  3. Loosening the IMS unit mounting screws.
    G16178755Courtesy of HYUNDAI MOTOR AMERICA

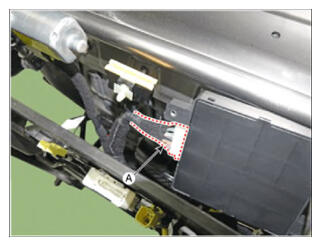

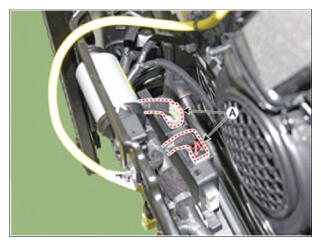

  4. Disconnect IMS module connectors (A) and then remove the IMS unit.
    G16178756Courtesy of HYUNDAI MOTOR AMERICA
    G16178757Courtesy of HYUNDAI MOTOR AMERICA
