Components & Components Location: Components

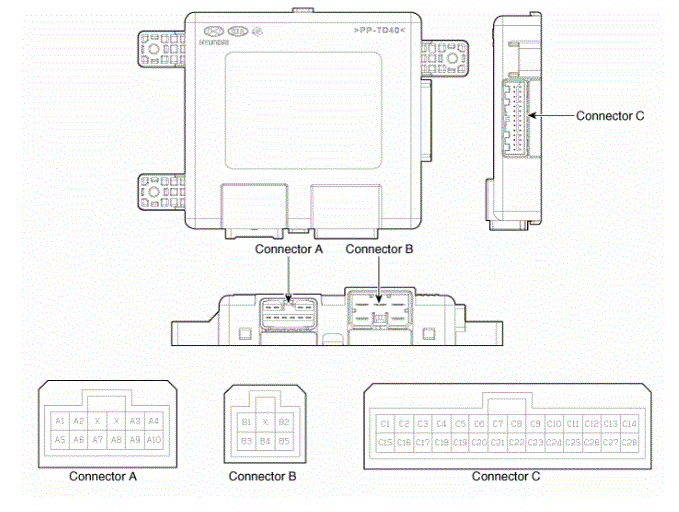

CONNECTOR PIN INFORMATION
| Pin no | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | B (+) | Slide motor switch (Forward) |
| 2 | Reclining motor (Forward) | GND(Power) | Reclining switch (Forward) |
| 3 | Height motor (Up) | B (+) | Front tilt switch signal (Up) |
| 4 | Slide motor (Forward) | - | Height switch (Up) |
| 5 | - | GND | Reclining limit switch signal (Forward) |
| 6 | Reclining motor (Backward) | B_CAN (High) | |
| 7 | Tilt motor (Up) | B_CAN (Low) | |
| 8 | Tilt motor (Down) | - | |
| 9 | Height motor (Down) | Driver lumber support motor (Mid) | |
| 10 | Slide motor (Backward) | Seat slide sensor | |
| 11 | Seat tilt sensor | ||
| 12 | - | ||
| 13 | Seat position sensor power | ||
| 14 | IGN 1 | ||
| 15 | Seat slide switch (Backward) | ||
| 16 | Seat recline switch (Backward) | ||
| 17 | Tilt switch (Down) | ||
| 18 | Height switch (Down) | ||
| 19 | Reclining limit switch signal (Backward) | ||
| 20 | GND | ||
| 21 | - | ||
| 22 | IMS Switch | ||
| 23 | Driver lumber support motor (Def) | ||
| 24 | Reclining sensor | ||
| 25 | Height sensor | ||
| 26 | - | ||
| 27 | - | ||
| 28 | B(+) |
