Heated Steering Wheel Control Module (Integrated Body Control Unit (IBU))

  1. Turn the ignition switch OFF and disconnect the battery negative (+) cable.
  2. Remove the glove box.

    (Refer to Body - " GLOVE BOX  ")

  3. Remove the heater control unit.

    (Refer to Heating, Ventilation And Air Conditioning - " HEATER CONTROL UNIT REPAIR PROCEDURES  ")

  4. Remove the IBU (A) after loosening the mounting bolts and nuts.
    G16176007Courtesy of HYUNDAI MOTOR AMERICA

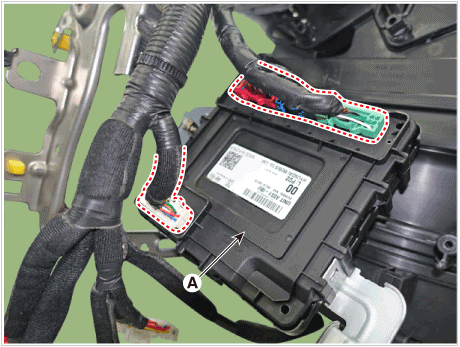

  5. Remove the IBU (A) after disconnecting the connector.
    G16176008Courtesy of HYUNDAI MOTOR AMERICA
