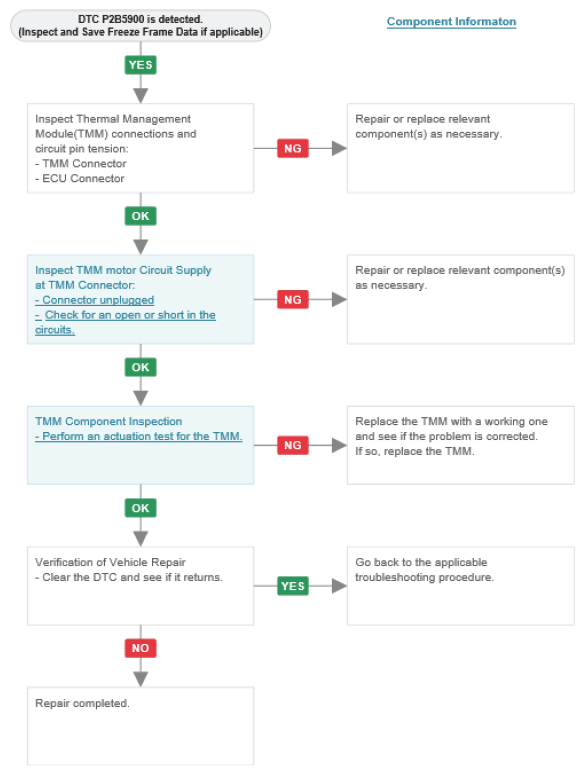

Home >> Hyundai >> 2022 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (8 Of 8) >> DTC P2B59-00: Engine Coolant Flow Control Valve Control Circuit/Open >> Troubleshooting >> Diagnostic Flowchart
