Home >> Hyundai >> 2022 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (7 Of 8) >> DTC P2270-00: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 2) >> Troubleshooting >> Diagnostic Flowchart

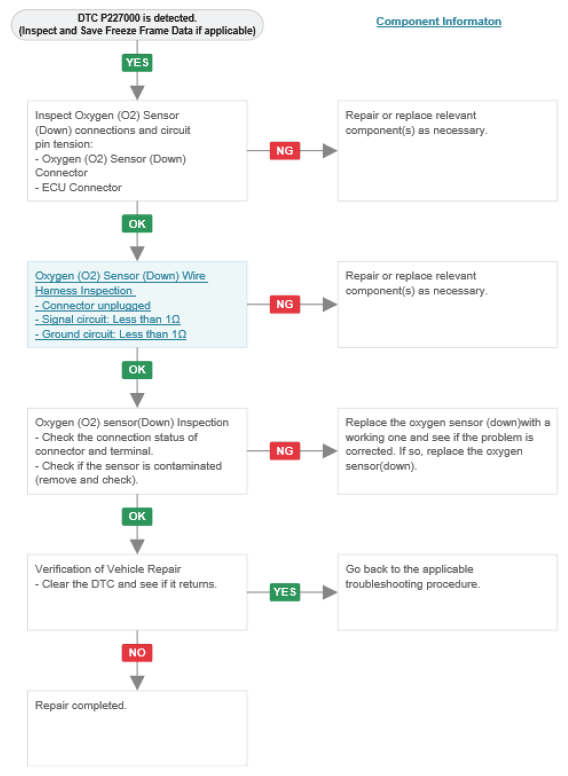

Diagnostic Flowchart

G16170606Courtesy of HYUNDAI MOTOR AMERICA
