Home >> Hyundai >> 2022 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (7 Of 8) >> DTC P2195-00: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 1) >> Troubleshooting >> Diagnostic Flowchart

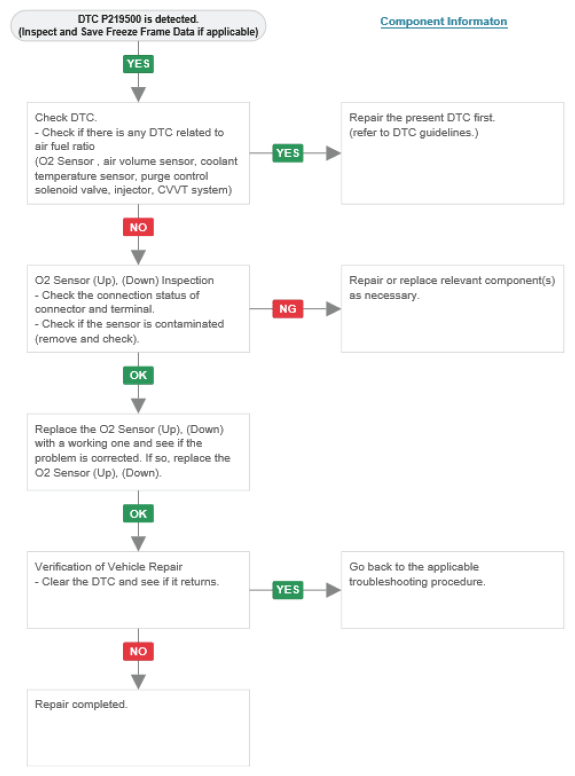

Diagnostic Flowchart

G16170592Courtesy of HYUNDAI MOTOR AMERICA
