Home >> Hyundai >> 2022 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (2 Of 8) >> DTC P013F-00: O2 Sensor Delayed Response - Lean To Rich Bank 1 Sensor 2 >> Troubleshooting >> Diagnostic Flowchart

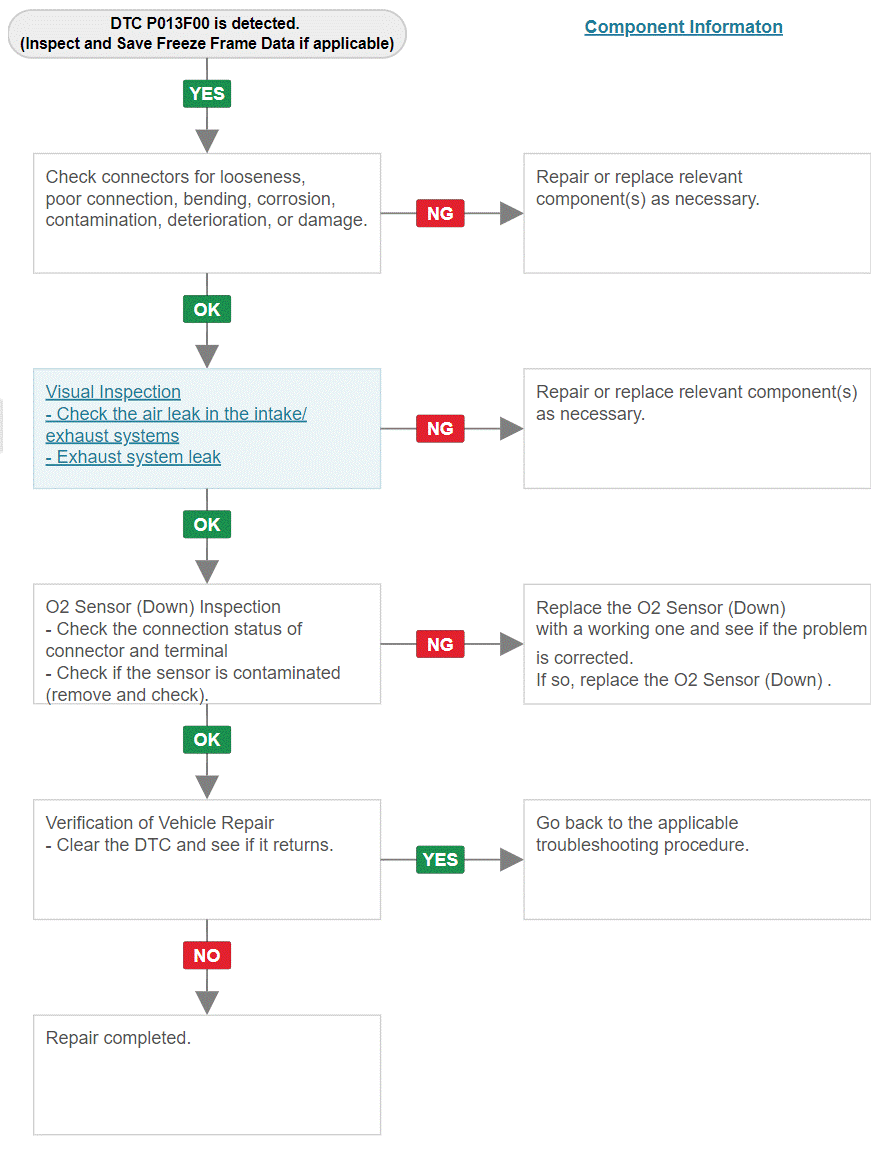

Diagnostic Flowchart

G16170417Courtesy of HYUNDAI MOTOR AMERICA
