Diagnostic Flowchart

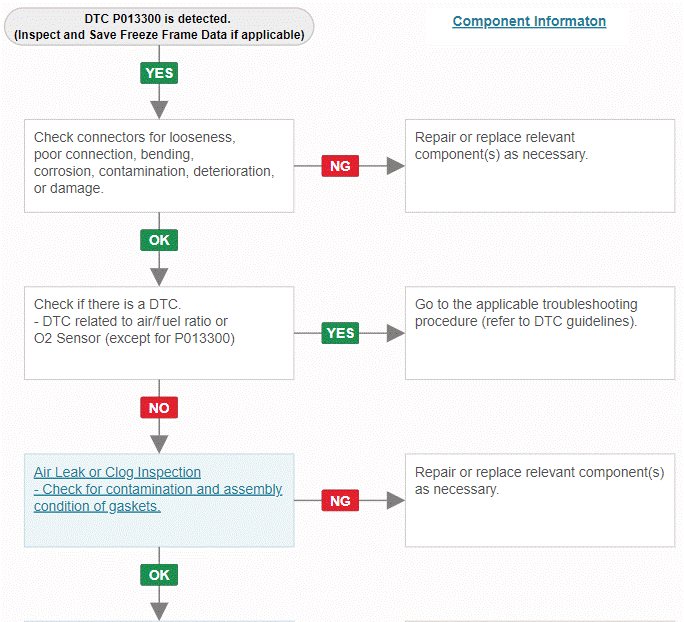

Fig 1: (1 of 2)
G16170408Courtesy of HYUNDAI MOTOR AMERICA

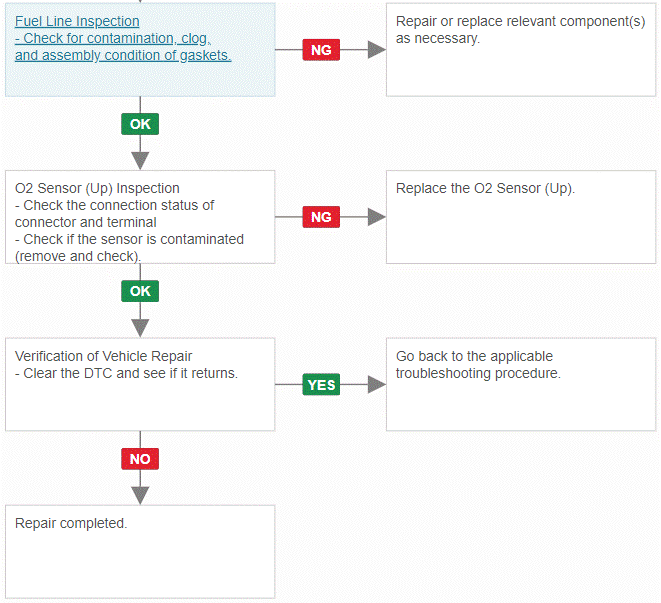

Fig 2: (2 of 2)
G00648629Courtesy of HYUNDAI MOTOR AMERICA
