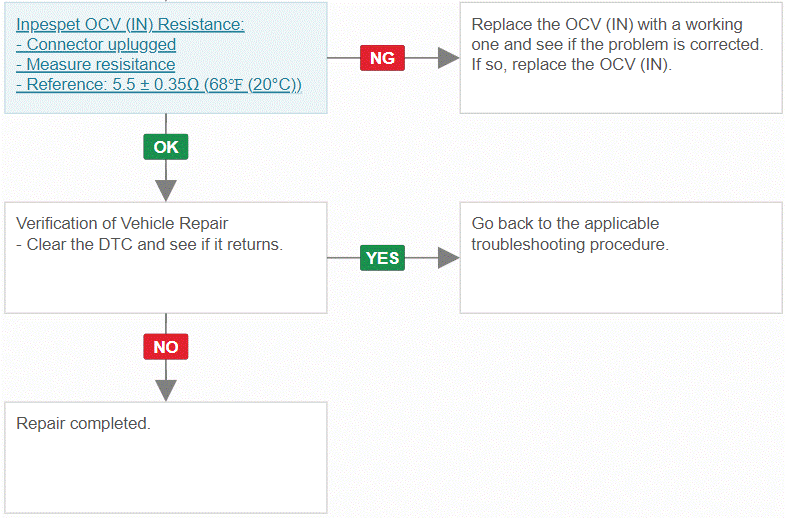

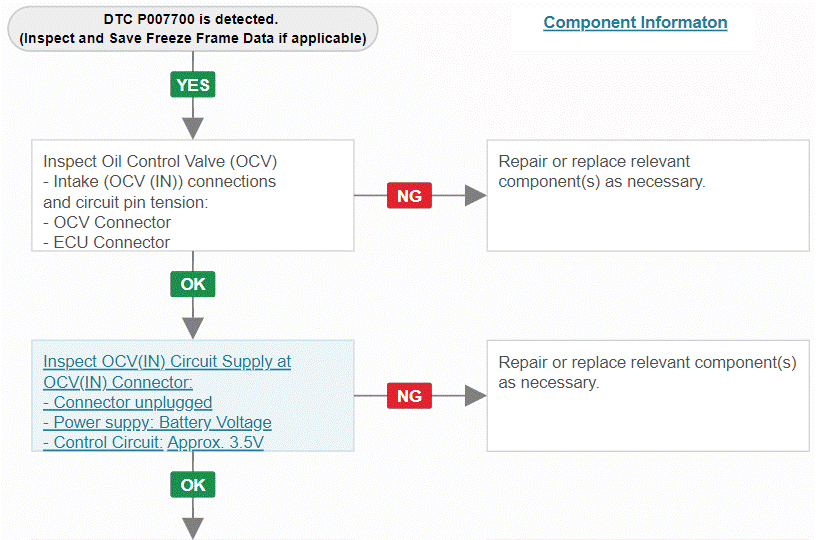

Home >> Hyundai >> 2022 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (1 Of 8) >> DTC P0077-00: Intake Valve Control Solenoid Circuit High >> Troubleshooting >> Diagnostic Flowchart
