Exhaust Gas Temperature Sensor (EGTS) [Front]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift up the vehicle.
  3. Remove the floor under cover front [RH].

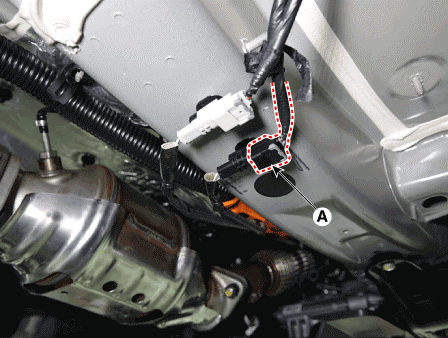

  4. Disconnect the EGTS connector (A).
    G16172511Courtesy of HYUNDAI MOTOR AMERICA

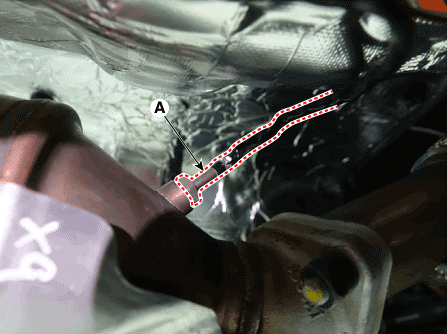

  5. Remove the gets sensor (A).

    Tightening torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb.ft)

    G16172512Courtesy of HYUNDAI MOTOR AMERICA
