Home >> Hyundai >> 2022 >> Tucson N Line, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (Except HEV) (11 Of 16) >> DTC P064D-49: Internal Control Module O2 Sensor Processor Performance Bank 1 >> Troubleshooting >> Diagnostic Flowchart

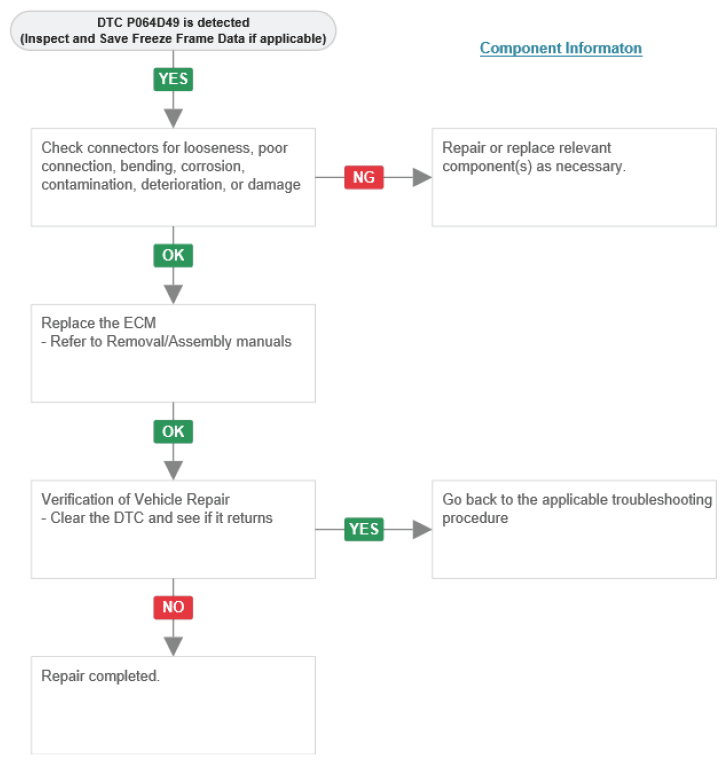

Diagnostic Flowchart

G14698145Courtesy of HYUNDAI MOTOR AMERICA
