Engine Control System Diagnosis (Except HEV) (11 Of 16)
>>
DTC P064A-00: Fuel Pump Control Module
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart

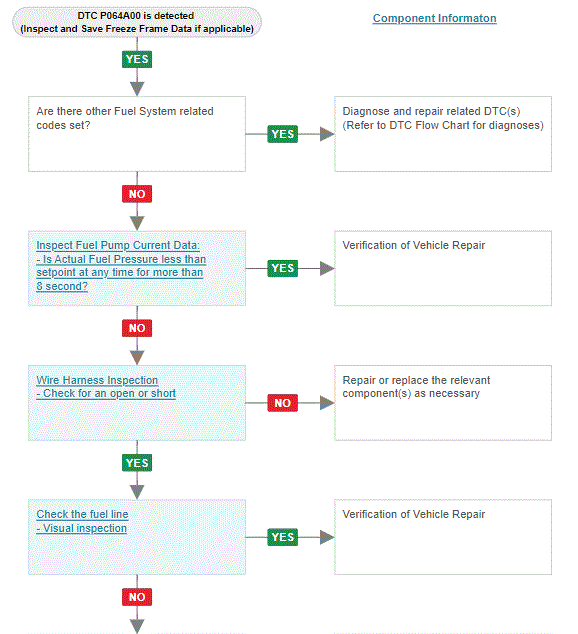

Fig 1: 1 of 2
Courtesy of HYUNDAI MOTOR AMERICA

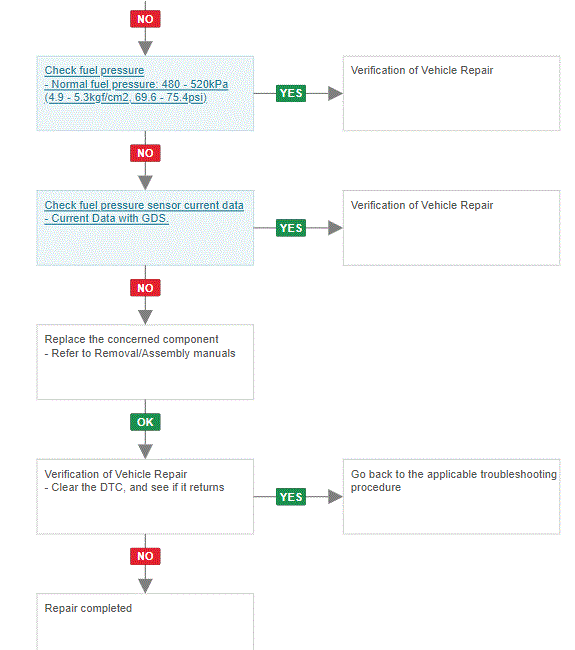

Fig 2: 2 of 2
Courtesy of HYUNDAI MOTOR AMERICA
