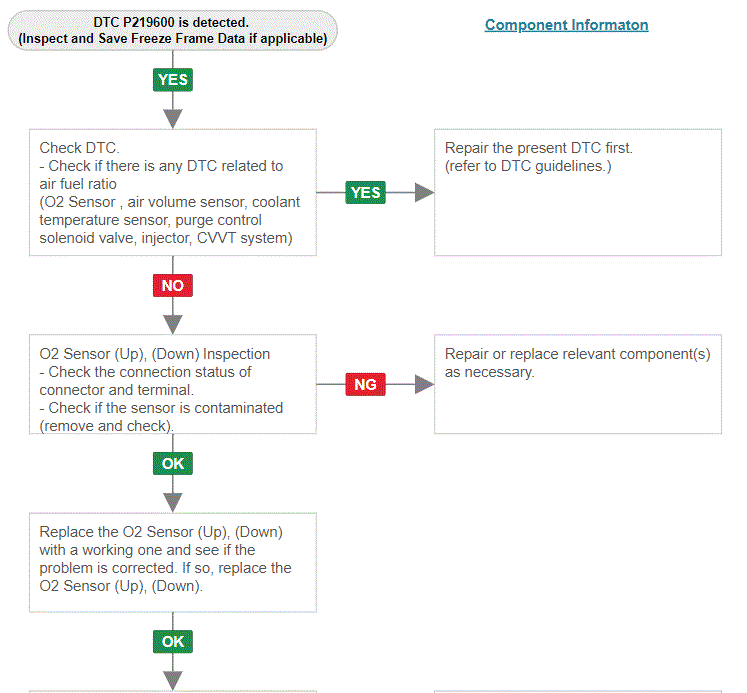

Home >> Hyundai >> 2022 >> Santa Fe Plug-In Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (7 Of 8) >> DTC P2196-00: O2 Sensor Signal Stuck Rich (Bank 1 Sensor 1) >> Troubleshooting >> Diagnostic Flowchart
