Engine Coolant Temperature Sensor (ECTS) #1 [ITM Side]

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

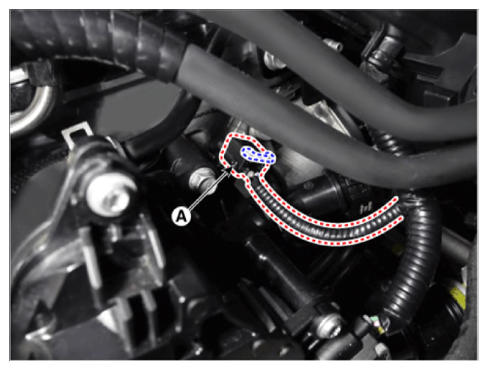

  2. Disconnect the engine coolant temperature sensor (ECTS) connector (A).
    G14774515Courtesy of HYUNDAI MOTOR AMERICA

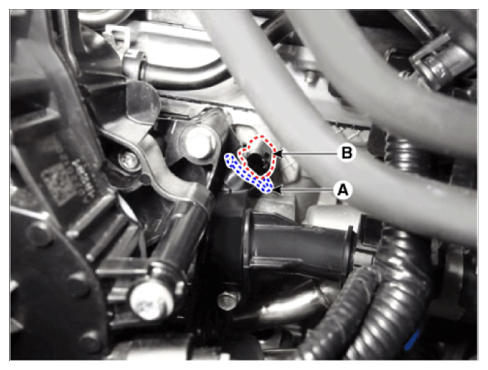

  3. Release the fixing clip (A) and then removing the ECTS (B).
    G14774516Courtesy of HYUNDAI MOTOR AMERICA
