Engine Control System Diagnosis - 2.5L (11 Of 16)
>>
DTC P064A-00: Fuel Pump Control Module
>>
Troubleshooting
>>
Diagnostic Flow-Chart
Diagnostic Flow-Chart

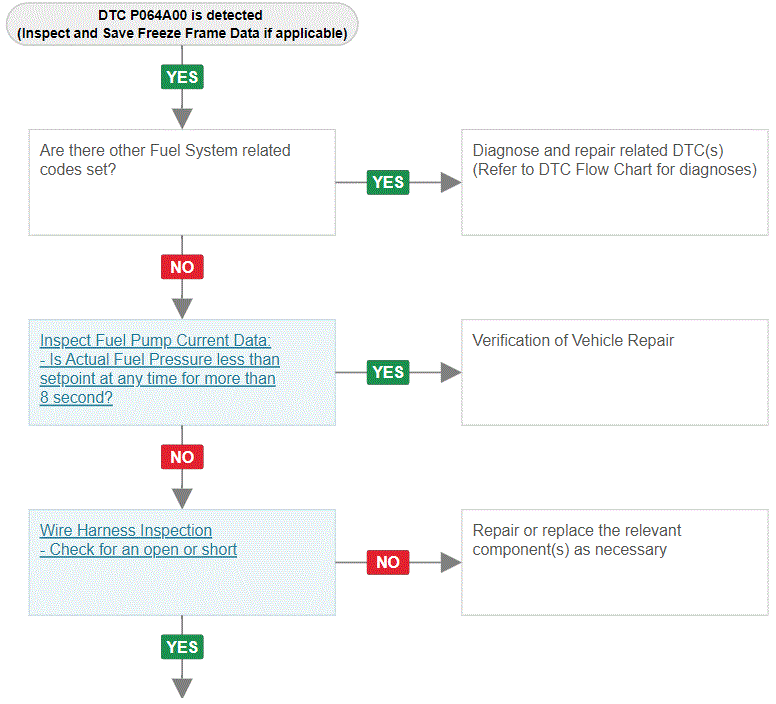

Fig 1: 1 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

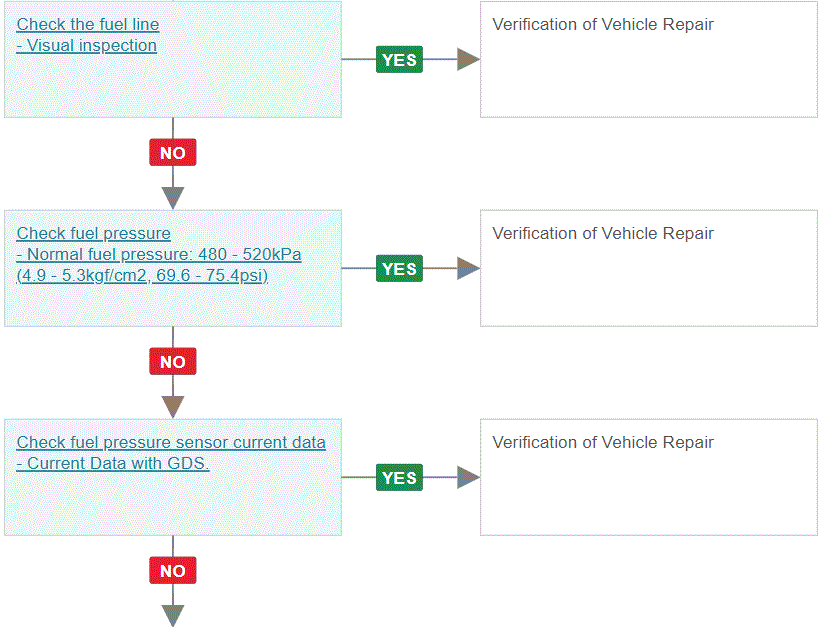

Fig 2: 2 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

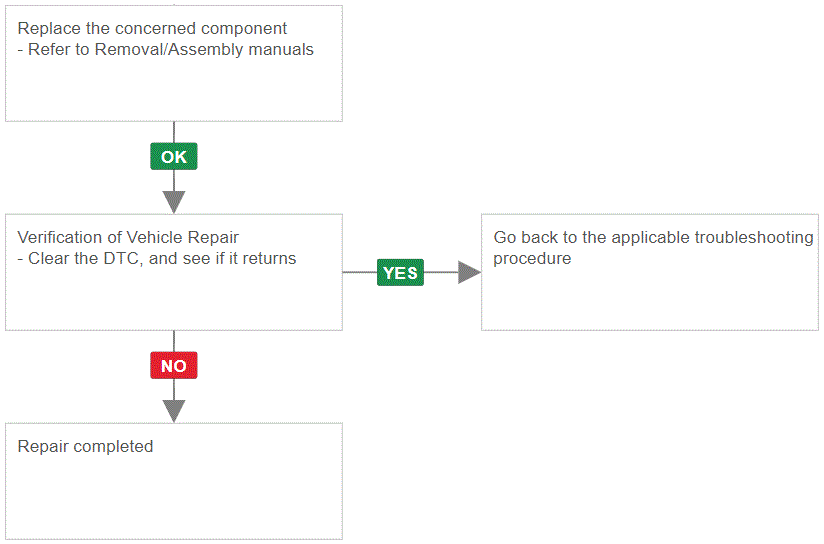

Fig 3: 3 Of 3
Courtesy of HYUNDAI MOTOR AMERICA
