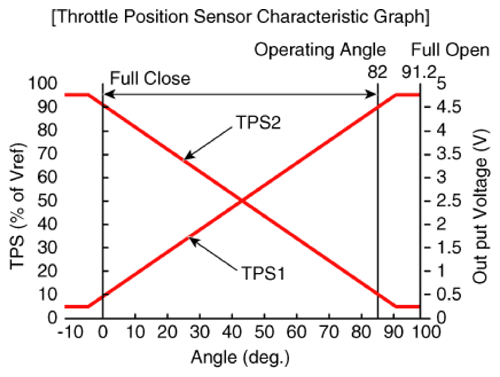

Throttle Position Sensor (TPS) [integrated into ETC Module]

G14710970Courtesy of HYUNDAI MOTOR AMERICA
