Repair Procedures: Removal

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")

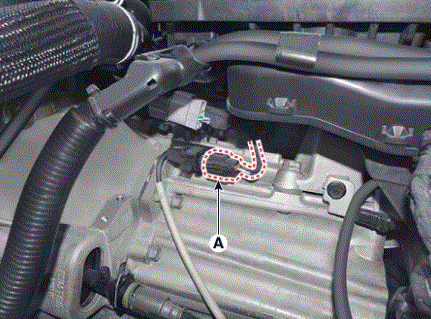

  3. Disconnect the vehicle speed sensor connector (A).
    G16177183Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the vehicle speed sensor (A).
    G16177184Courtesy of HYUNDAI MOTOR AMERICA
