MDPS Tuning Data Setting Procedure

  1. Connect the diagnostic tool diagnostic tool to the vehicle's self-diagnostic connector.
  2. Key on the Ignition switch.

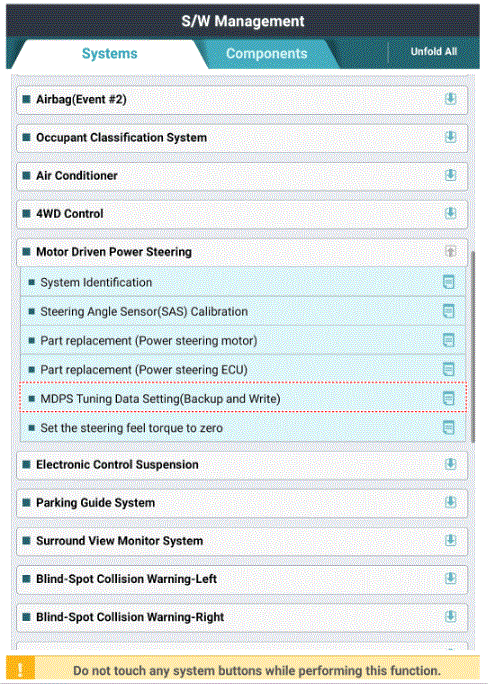

  3. After Selecting the "vehicle model" and "system", select the "MDPS Tuning Data Setting" on diagnostic tool vehicle selection screen.

    [MDPS Tuning Data Setting]

    G16177738Courtesy of HYUNDAI MOTOR AMERICA
