Removal and Installation

When the oil sensor signal fault occurs, refer to the DTC guide.

1. Disconnect the battery (-) terminal.
2. Drain the engine oil.

   (Refer to Lubrication System - "Oil And Filter Replacement ")

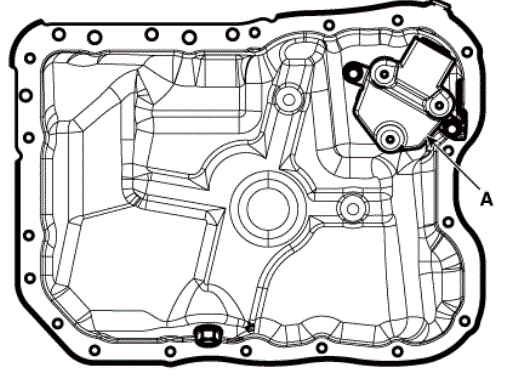

3. Remove the oil level sensor protector (A).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

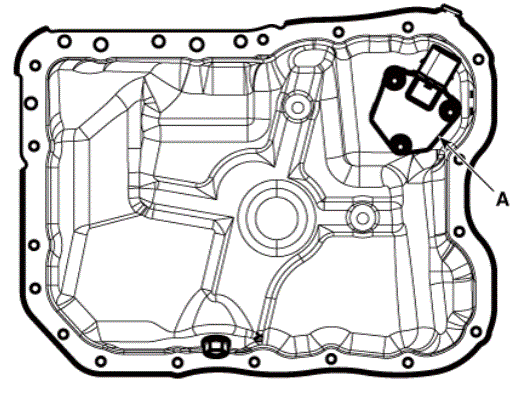

4. Remove the oil level sensor (A) from the oil pan after disconnecting the connector.

   Tightening torque:

   8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • When installing, replace with new gaskets.
5. Install in the reverse order of removal.
