Home >> Hyundai >> 2021 >> Venue SE >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 6) >> DTC P0112-00: Intake Air Temperature Sensor 1 Circuit Low Input >> Troubleshooting >> Diagnostic Flowchart

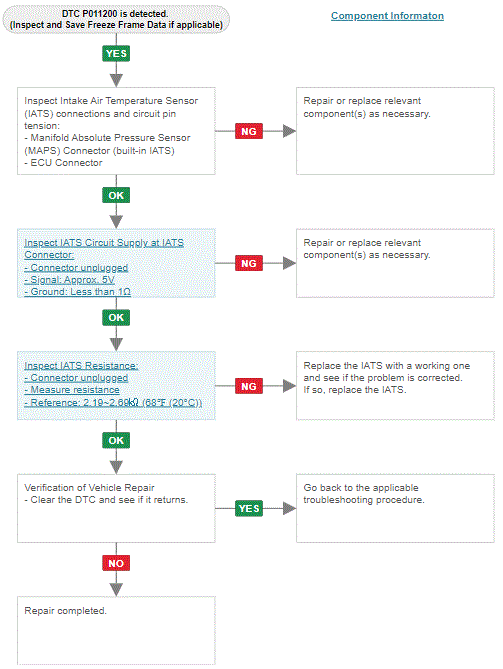

Diagnostic Flowchart

G14703269Courtesy of HYUNDAI MOTOR AMERICA
