Home >> Hyundai >> 2021 >> Venue SE >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Components & Components Location >> Circuit Diagram >> Assist & Rear Power Window Switch

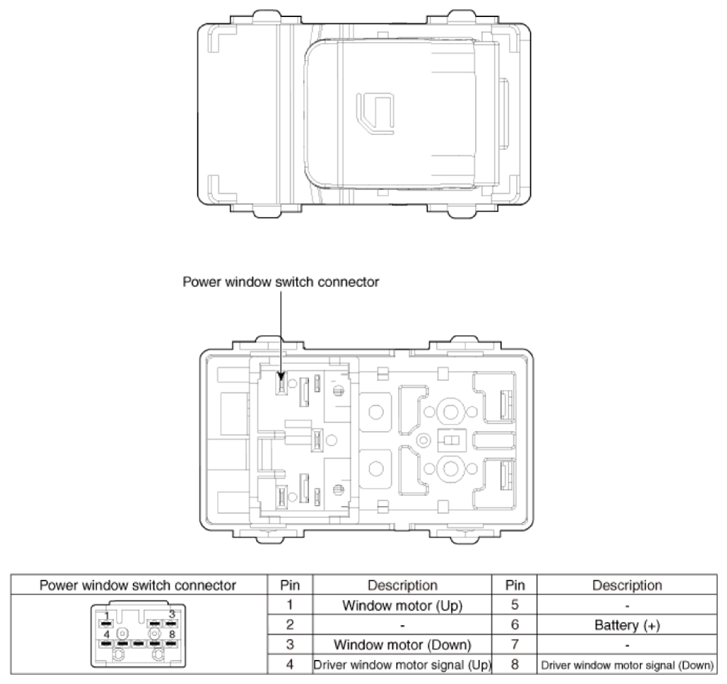

Assist & Rear Power Window Switch

G14696266

Courtesy of HYUNDAI MOTOR AMERICA
