Home >> Hyundai >> 2021 >> Venue Denim >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 6) >> DTC P0077-00: Intake Valve Control Solenoid Circuit High >> Troubleshooting >> Diagnostic Flowchart

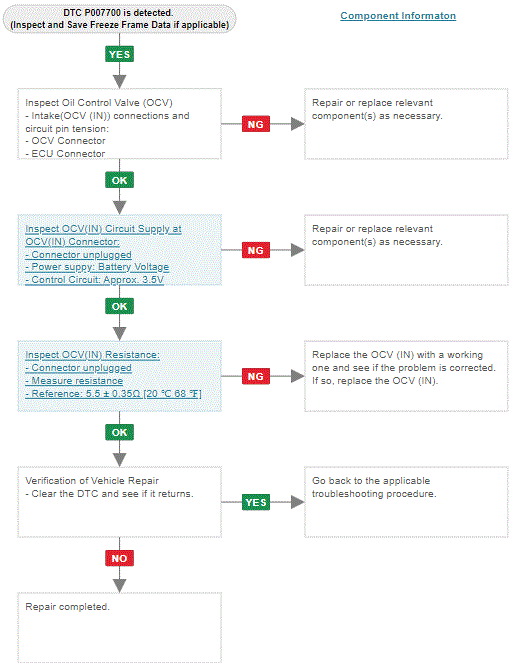

Diagnostic Flowchart

G14703253Courtesy of HYUNDAI MOTOR AMERICA
