Circuit Diagram

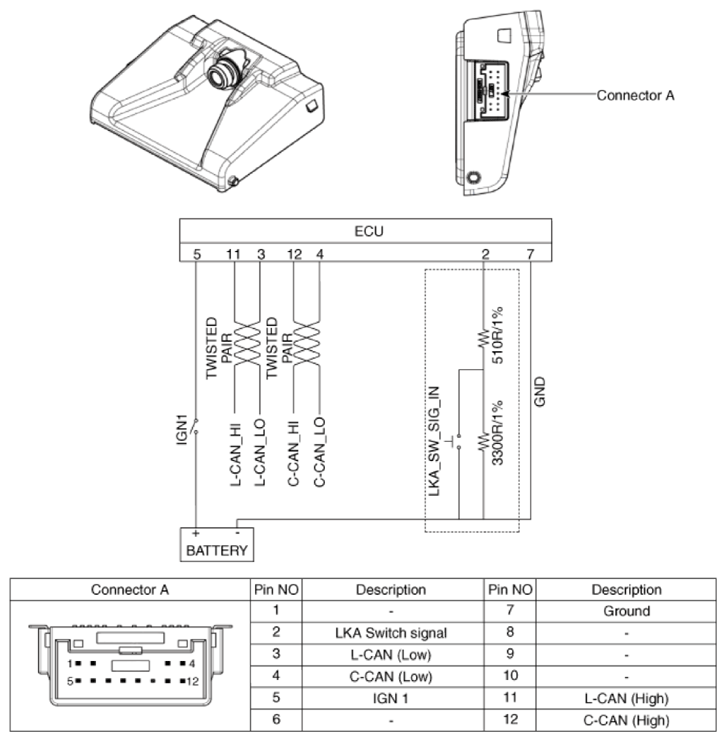

Fig 1: Front View Camera Unit Connector End View And Terminal Description

G14702665

Courtesy of HYUNDAI MOTOR AMERICA
