Transmitter Code Registration (Using GDS)

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G14696079Courtesy of HYUNDAI MOTOR AMERICA
  2. Select the 'S/W Management' and 'Car model'.

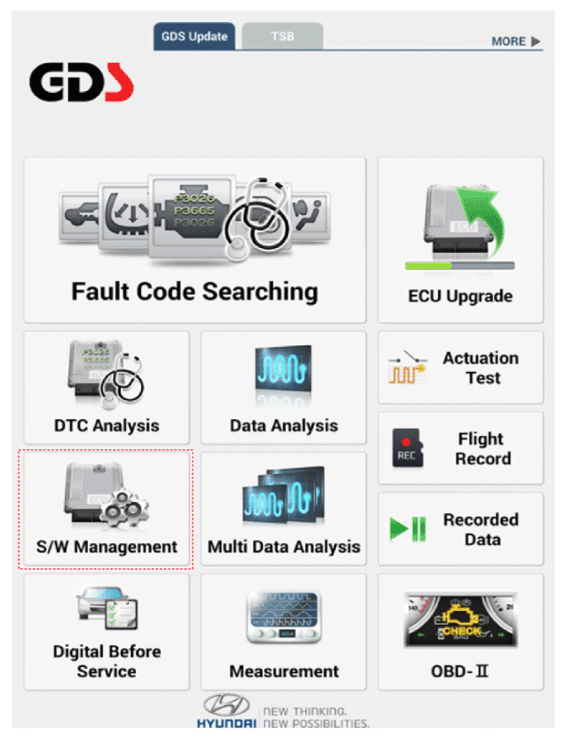

    G14696080Courtesy of HYUNDAI MOTOR AMERICA

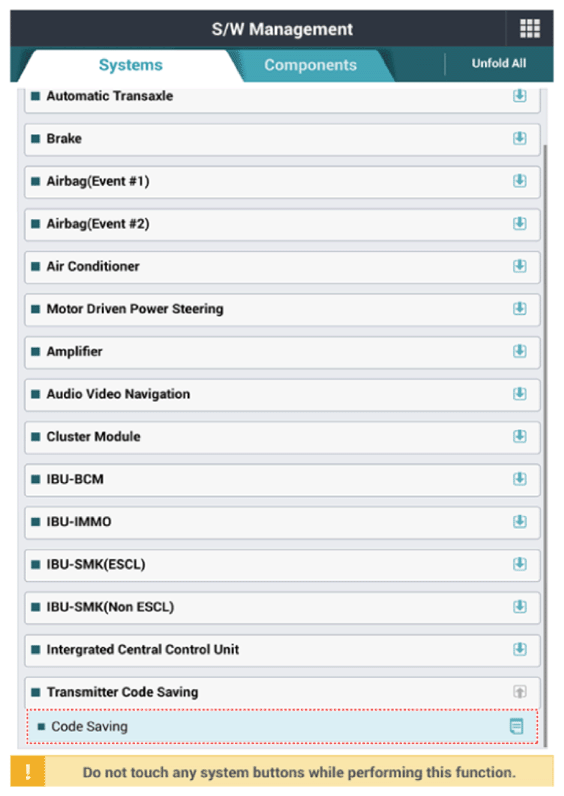

    G14696081Courtesy of HYUNDAI MOTOR AMERICA

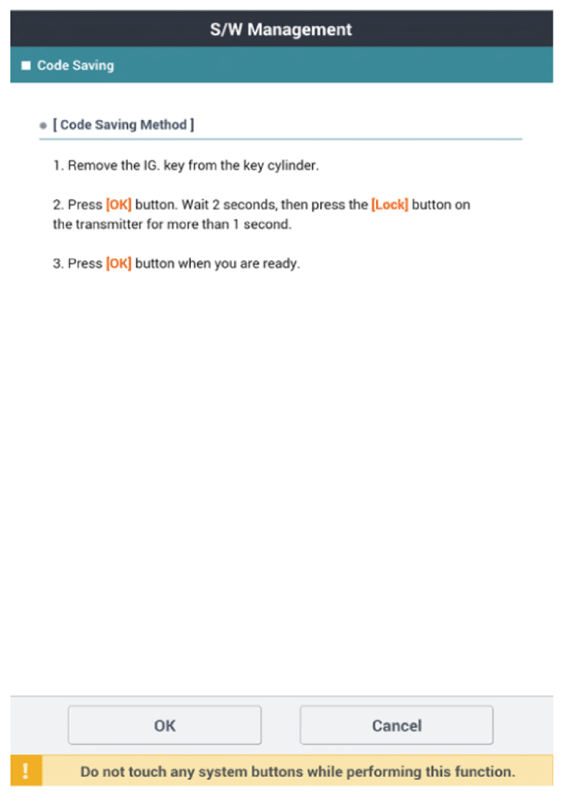

    G14696082Courtesy of HYUNDAI MOTOR AMERICA
