Repair Procedures: Removal

  1. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Remove the battery and tray.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the ECM.

    (Refer to Engine Control System - "ECM ")

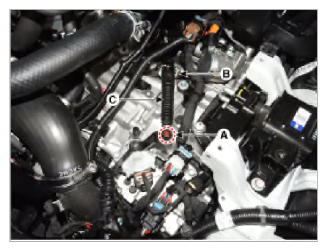

  4. Remove the shift cable (C) from the cable bracket (B), after loosening the mounting nut (A).
    G13052881Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  6. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  7. Remove the heater unit & blower unit

    (Refer to HEATER UNIT and BLOWER UNIT Heating, Ventilation and Air Conditioning - "Heater & Blower")

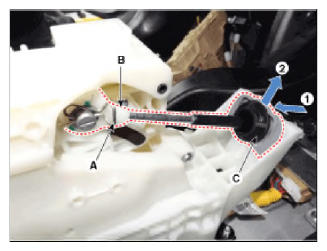

  8. Disconnect the shift cable.
    1. Disconnect the eye-end (B) after removing the snap pin (A).
    2. Release the lock and then remove the cable socket (C).
      G13052882Courtesy of HYUNDAI MOTOR AMERICA

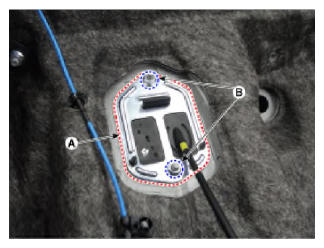

  9. Remove the retainer (A) by loosening the nuts (B-2ea).
    G13052883Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the shift cable from the vehicle.
