Repair Procedures: Removal

  1. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Remove the battery and tray.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the clutch actuator assembly.

    (Refer to Dual Clutch Transmission Control System - "CLUTCH ACTUATOR ASSEMBLY ")

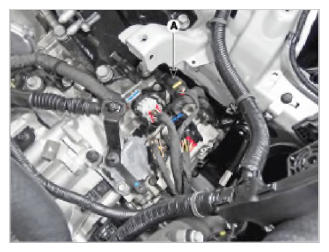

  4. Disconnect the input shaft speed sensor (A).
    G13052848Courtesy of HYUNDAI MOTOR AMERICA

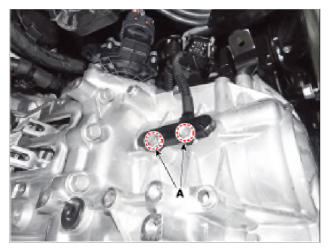

  5. Remove the input shaft speed sensor after removing the bolt (A-2 ea).
    G13052849Courtesy of HYUNDAI MOTOR AMERICA
    G13052850Courtesy of HYUNDAI MOTOR AMERICA
