Repair Procedures: Replacement

  1. Remove the front seat assembly. (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
  2. Disconnect the front seat belt buckle connector wiring (A).
    G15494806Courtesy of HYUNDAI MOTOR AMERICA

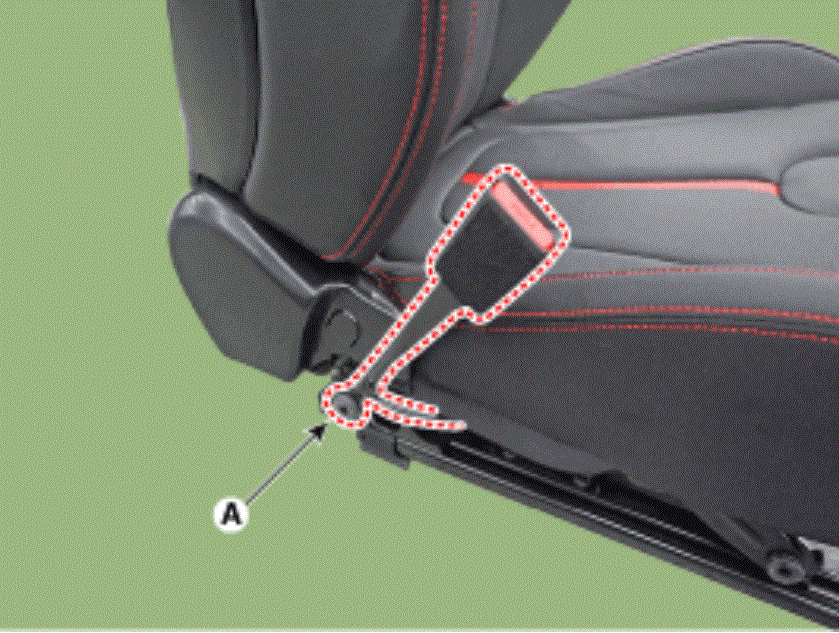

  3. After loosening the mounting bolt, then remove the front seat belt buckle (A).

    Tightening torque:

    39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

    G15494807Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse removal procedure.

    Information

    • Make sure the connector is plugged in properly.
