Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

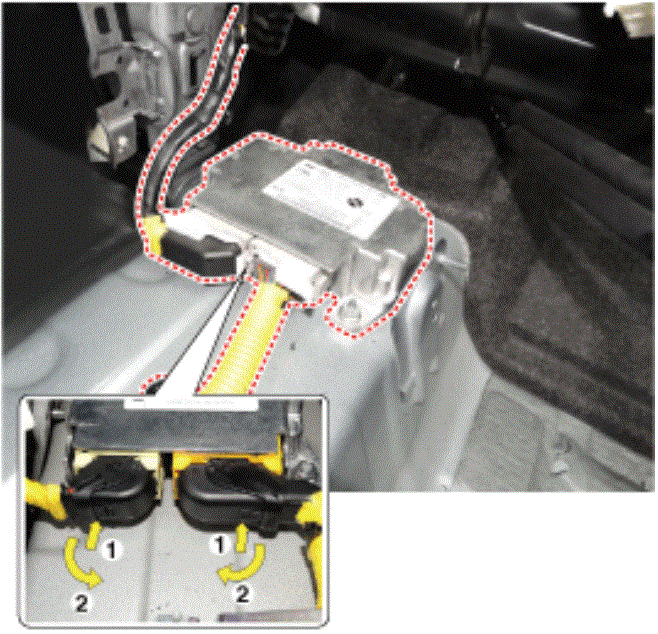

  4. Pull up the lock of the SRSCM connector, then disconnect the connector.
    G15483206Courtesy of HYUNDAI MOTOR AMERICA

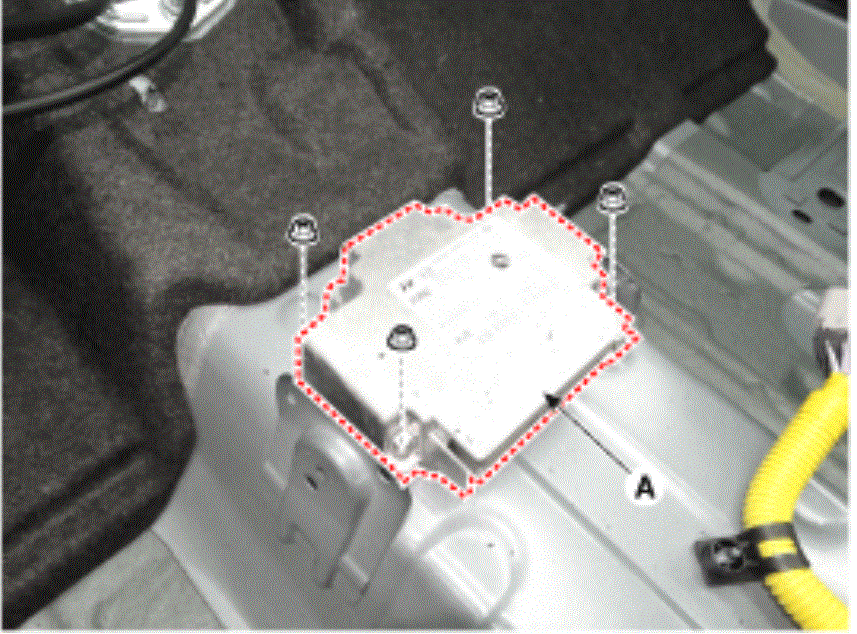

  5. Remove the SRSCM nuts from the SRSCM, then remove the SRSCM.
    G15483207Courtesy of HYUNDAI MOTOR AMERICA
