Repair Procedures: Removal

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front passenger seat assembly. (Refer to Body - "FRONT SEAT ")

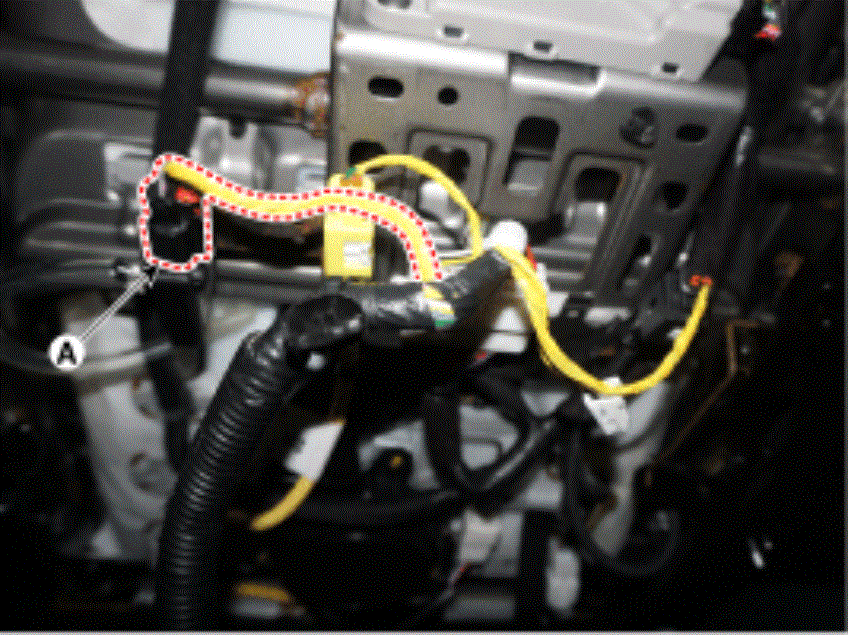

  3. Disconnect the OCS ECU connector.
    G15483222Courtesy of HYUNDAI MOTOR AMERICA

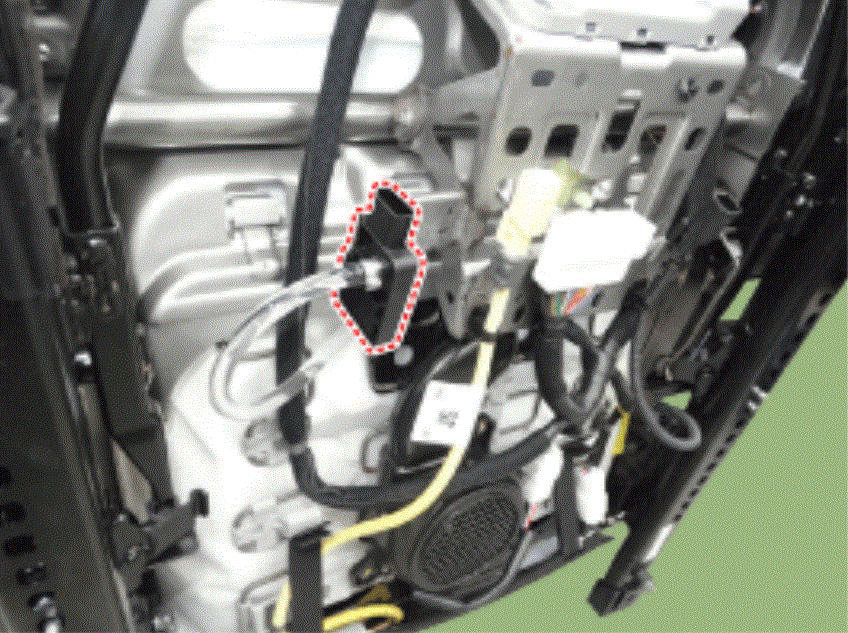

  4. Remove the OCS ECU with hose.
    G15483223Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Do not disconnect the hose.
  5. Remove the front passenger seat cousin and then remove the OCS sensor. (Refer to Body - "Front Seat Cushion Cover ")
