Description & Operation: Description
- Component Location : Dual Clutch Transmission assembly
- Function

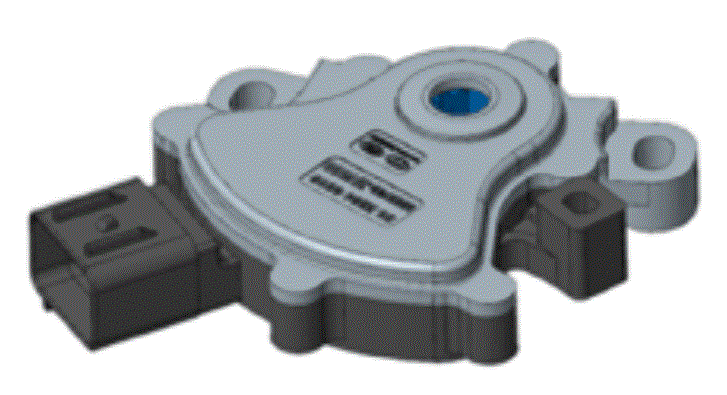

- The position switch mounted on the upper of transmission and connected with shifter lever.
- Check whether the vehicle can be driven forward/backward while engine is running.
- It controls the shift stage by transmitting the PWM signal value of the position switch to the TCM according to the P, R, N, D operation of the shift lever.
