Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

  3. Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.
    G13055413Courtesy of HYUNDAI MOTOR AMERICA

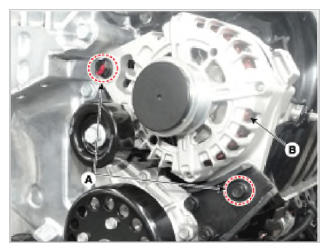

  4. Remove the alternator (B) after loosening the mounting bolts (A).
G13055414Courtesy of HYUNDAI MOTOR AMERICA
