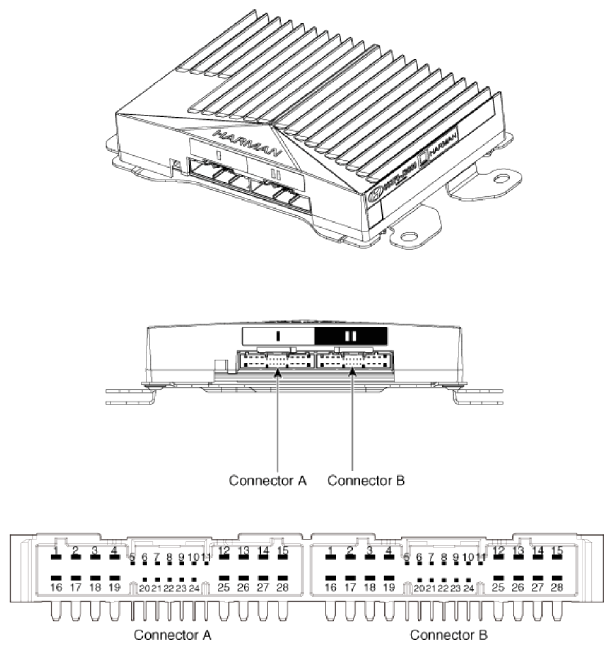

| 1 |
BATT (+) |
1 |
- |
| 2 |
BATT (+) |
2 |
- |
| 3 |
BATT (+) |
3 |
- |
| 4 |
BATT (+) |
4 |
- |
| 5 |
- |
5 |
- |
| 6 |
Multimedia CAN (High) |
6 |
- |
| 7 |
Multimedia CAN (Low) |
7 |
- |
| 8 |
ACC |
8 |
- |
| 9 |
Navigation voice (+) |
9 |
- |
| 10 |
C-CAN (High) |
10 |
- |
| 11 |
C-CAN (Low) |
11 |
- |
| 12 |
Sub woofer 2 (+) |
12 |
- |
| 13 |
Sub woofer 1 (+) |
13 |
Center speaker (+) |
| 14 |
Rear door speaker RH (+) |
14 |
Front tweeter, door speaker RH (+) |
| 15 |
Rear door speaker LH (+) |
15 |
Front tweeter, door speaker RH (+) |
| 16 |
Ground |
16 |
- |
| 17 |
Ground |
17 |
- |
| 18 |
Ground |
18 |
- |
| 19 |
Ground |
19 |
- |
| 20 |
SPDIF (High) |
20 |
- |
| 21 |
SPDIF (Low) |
21 |
- |
| 22 |
SPDIF GND |
22 |
- |
| 23 |
Navigation voice (-) |
23 |
- |
| 24 |
- |
24 |
- |
| 25 |
Sub woofer 2 (-) |
25 |
- |
| 26 |
Sub woofer 1 (-) |
26 |
Center speaker (-) |
| 27 |
Rear door speaker RH (-) |
27 |
Front tweeter, door speaker RH (-) |
| 28 |
Rear door speaker LH (-) |
28 |
Front tweeter, door speaker RH (-) |
