Repair Procedures: Removal

Information

• In case of bad quality or poor focus, be sure to check the camera lens surface condition and foreign materials.

1. Disconnect the negative (-) battery terminal.
2. Remove the rear bumper.

   (Refer to Body - "REAR BUMPER ")

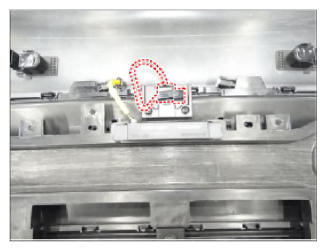

3. Disconnect the rear view camera connector (A).
4. Remove the rear view camera assembly after loosening the mounting screws.

   Courtesy of HYUNDAI MOTOR AMERICA
