Circuit Diagram

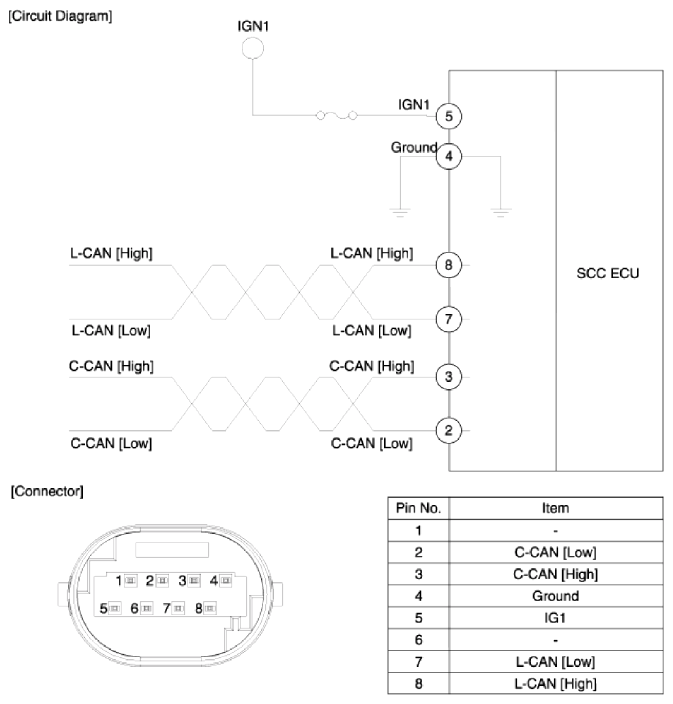

Fig 1: Smart Cruise Control Unit Connector End View And Terminal Description

G13052457

Courtesy of HYUNDAI MOTOR AMERICA
