Circuit Diagram

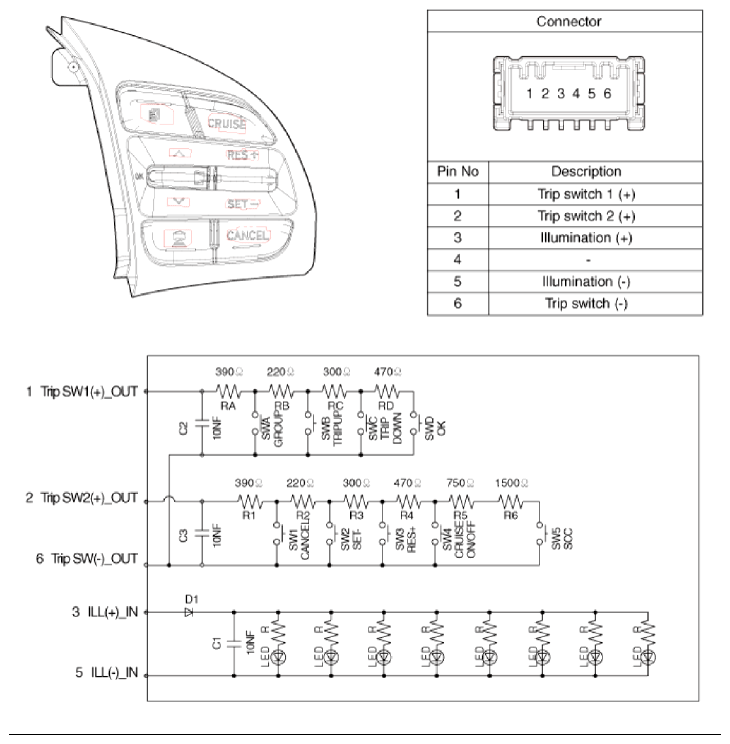

Fig 1: Smart Cruise Control Switch Connector End View And Terminal Description

G13052474

Courtesy of HYUNDAI MOTOR AMERICA
