Components Location (1)

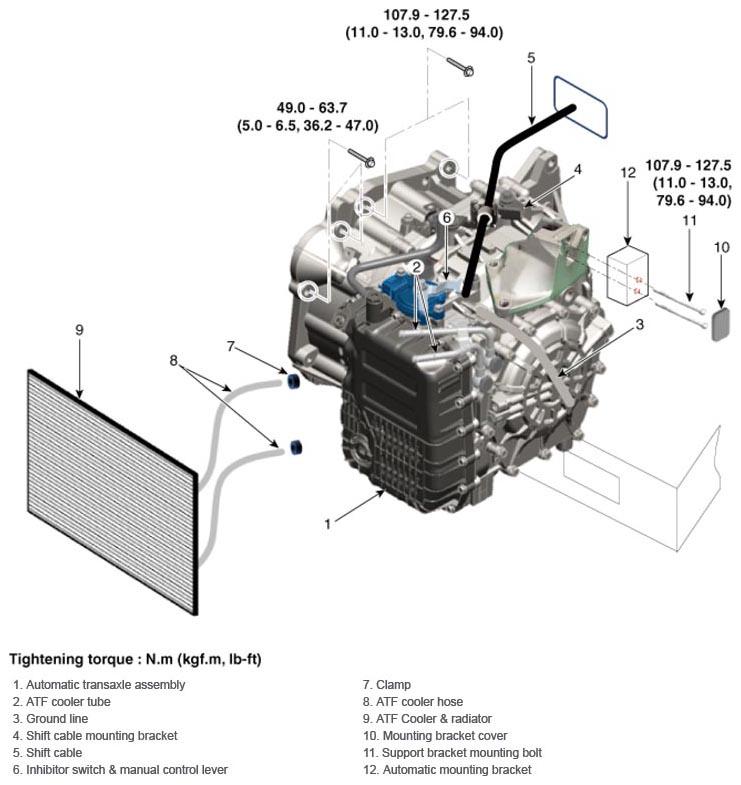

Fig 1: Automatic Transaxle Components With Torque Specification (1 Of 2)

G13021121

Courtesy of HYUNDAI MOTOR AMERICA
