Engine Control System Diagnosis - 2.0L (3 Of 3)
>>
DTC P0620-00: Alternator Control Circuit
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA

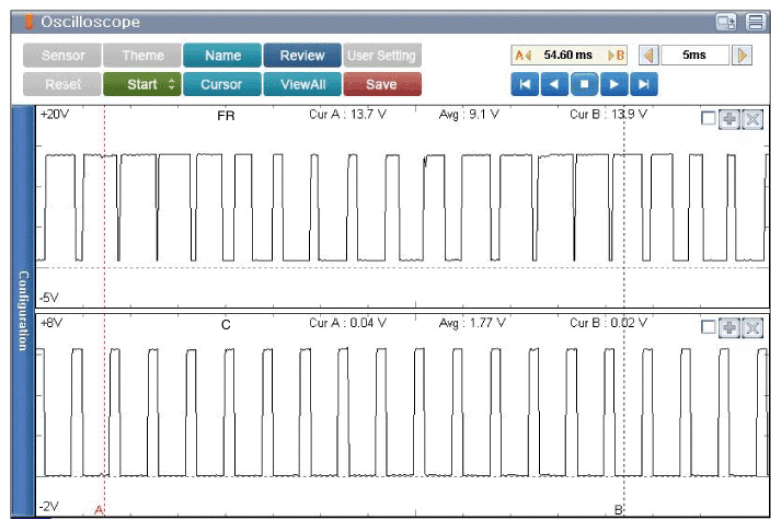

The duty (+) at FR terminal is widened when electronic load applied.
Courtesy of HYUNDAI MOTOR AMERICA
