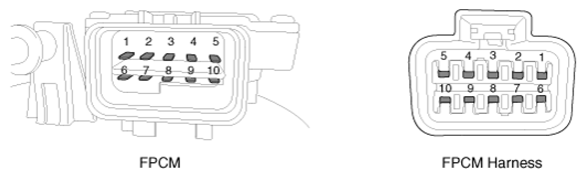

Terminal Illustration

G13021045Courtesy of HYUNDAI MOTOR AMERICA
TERMINAL FUNCTION

Pin No Description
1 Fuel sender ground
2 Fuel pressure sensor (FPS) signal input
3 Fuel pressure sensor (FPS) ground (-)
4 Ground
5 CAN [Low]
6 Fuel sender signal
7 -
8 Fuel pressure sensor (FPS) power supply (+5V)
9 CAN [High]
10 Battery power (B+)
