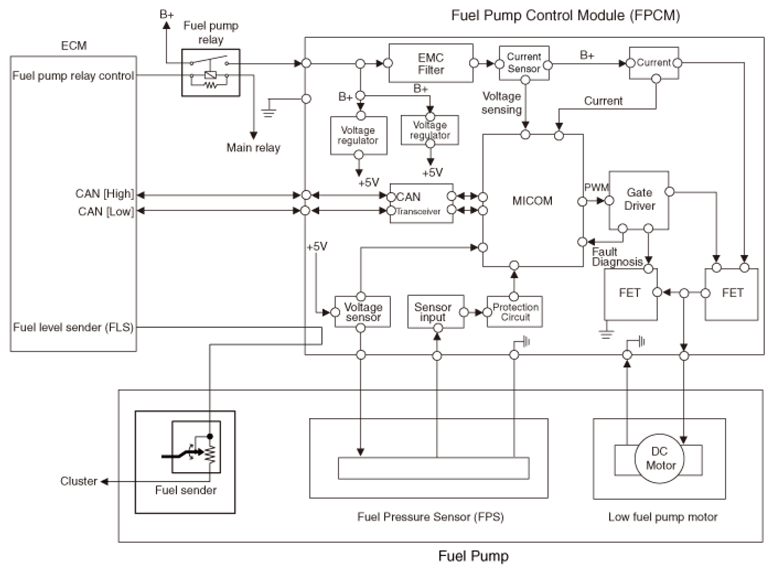

Home >> Hyundai >> 2021 >> Tucson Value, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 2.0L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
