Repair Procedures: Removal

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.

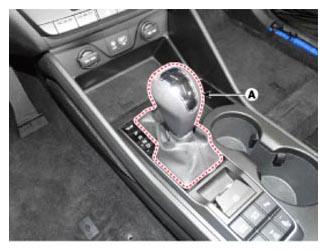

  2. To remove the gear knob & gear boots (A) pull both of it up.
    G13030748Courtesy of HYUNDAI MOTOR AMERICA

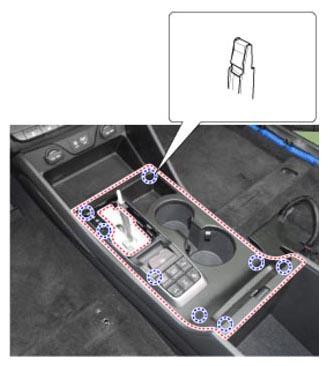

  3. Using a screwdriver or remover, remove the floor console upper cover (A).
    G13030749Courtesy of HYUNDAI MOTOR AMERICA

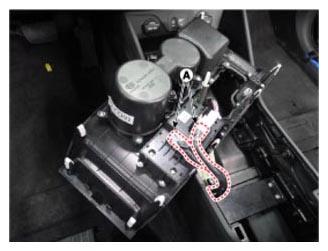

  4. Disconnect the connectors (A) from the floor console upper cover.
    G13030750Courtesy of HYUNDAI MOTOR AMERICA

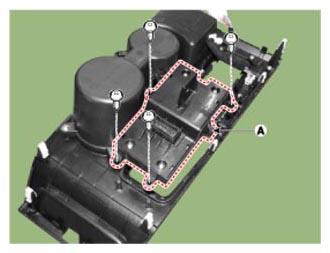

  5. Remove the SVM switch (A) from the floor console upper cover after loosening the mounting screws.
G13030751Courtesy of HYUNDAI MOTOR AMERICA
