Repair Procedures: Removal

Information

• In case of bad quality or poor focus, be sure to check the camera lens surface condition and foreign materials.

1. Disconnect the negative (-) battery terminal.
2. Remove the tailgate trim.

   (Refer to Body - "LIFTGATE TRIM ")

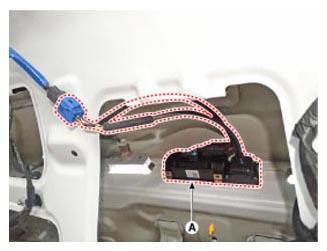

3. Remove the tail gate open switch (A).

   Courtesy of HYUNDAI MOTOR AMERICA

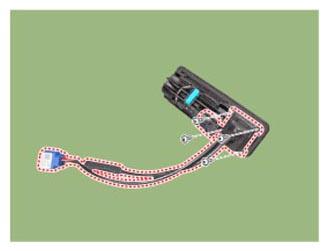

4. Remove the back view camera after loosening the mounting screws.

   Courtesy of HYUNDAI MOTOR AMERICA
