Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

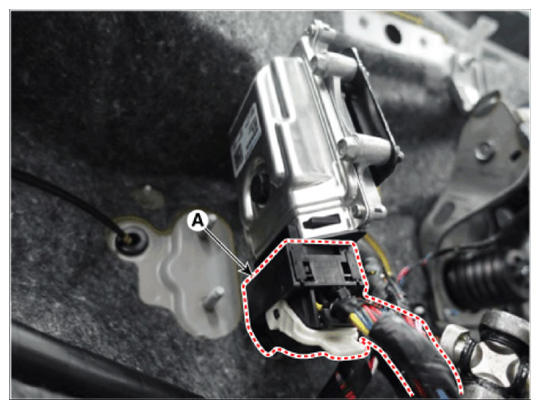

  2. Disconnect the SBW control unit (SCU) connector (A).
    G14626371Courtesy of HYUNDAI MOTOR AMERICA

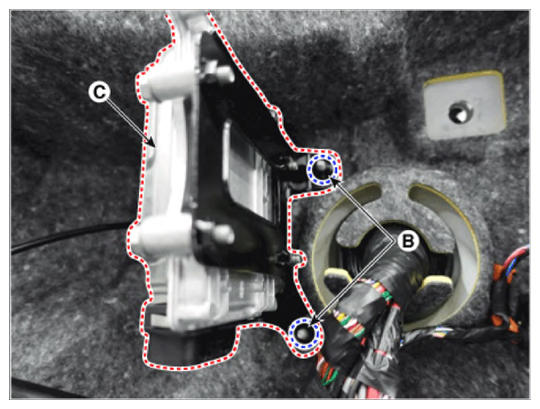

  3. Remove the SBW Control Unit (SCU) (C) after removing the nuts (B).
G14626372Courtesy of HYUNDAI MOTOR AMERICA
