Trunk Lock Module Inspection

  1. Remove the tailgate trim.

    (Refer to Body - "TRUNK LID TRIM ")

  2. Disconnect the 4P connector from the actuator.
    G14625966Courtesy of HYUNDAI MOTOR AMERICA

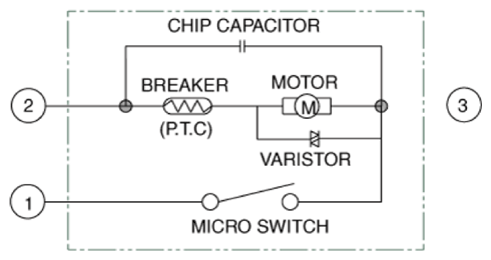

  3. Check for continuity between the terminals in each switch position according to the table.
G14625967Courtesy of HYUNDAI MOTOR AMERICA
