Rear Door Lock Module Inspection

  1. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

  2. Remove the rear door module.

    (Refer to Body - "REAR DOOR MODULE ")

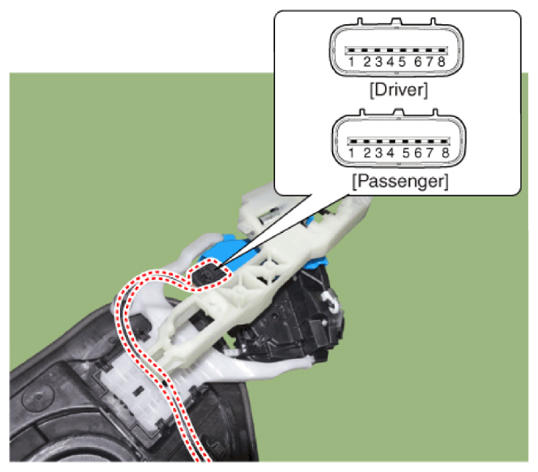

  3. Disconnect the connectors from the actuator.
    G14625963Courtesy of HYUNDAI MOTOR AMERICA

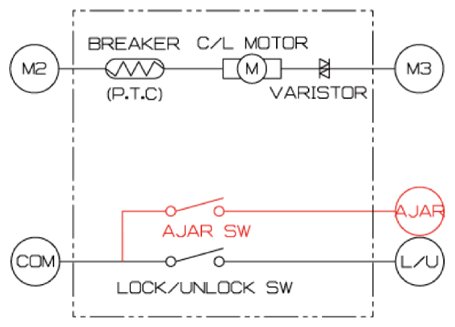

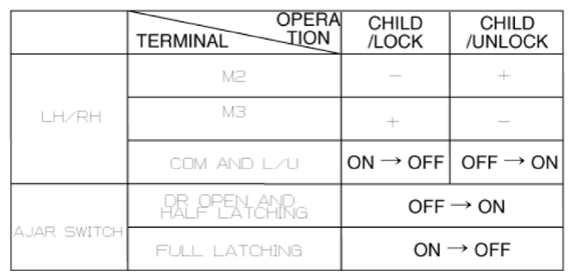

  4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
    Terminal Operation
    LH RH
    1 - M1
    2 COM M2
    3 Lock/Unlock switch -
    4 AJAR -
    5 - AJAR
    6 - Lock/Unlock switch
    7 M2 COM
    8 M1 -
    G14625964Courtesy of HYUNDAI MOTOR AMERICA
    G14625965Courtesy of HYUNDAI MOTOR AMERICA
