Repair Procedures: Installation

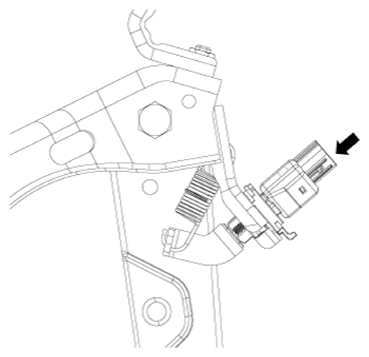

- Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.

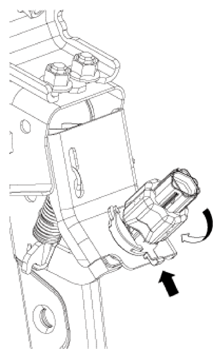

- After inserting, turn the stop switch (A) 45° clockwise, and then assemble locking plate by pushing.
- Confirm the gap between stop lamp switch and bracket.

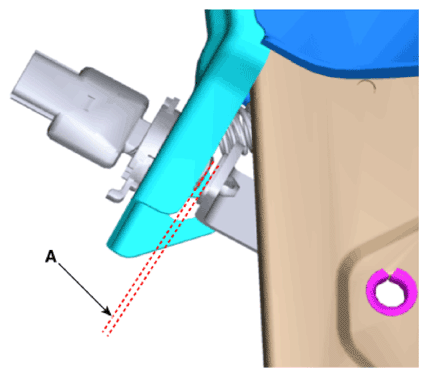

Stop lamp clearance (A):
1.0 - 2.0 mm (0.04 - 0.08 in.)
NOTE:- If the gap between stop lamp switch and bracket is not 1.0-2.0 mm (0.04-0.08 in), perform the above process again.

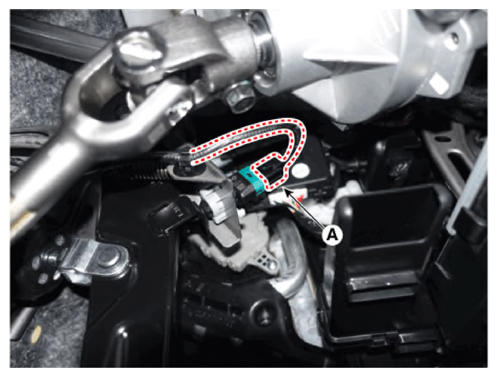

- Connect the stop lamp switch connector (A).
- Install the lower crash pad.
(Refer to Body - "CRASH PAD ")
