diagnostic tool Data Analysis

  1. Analyze diagnostic tool data and confirm if there is anything wrong with the stop lamp switch.
    1. Connect the diagnostic tool to the self-diagnosis connector.
    2. Turn the spark switch on
    3. Step on the brake pedal.
    4. Inspect the "brake switch" category that displays the "sensor data" diagnostic tool.

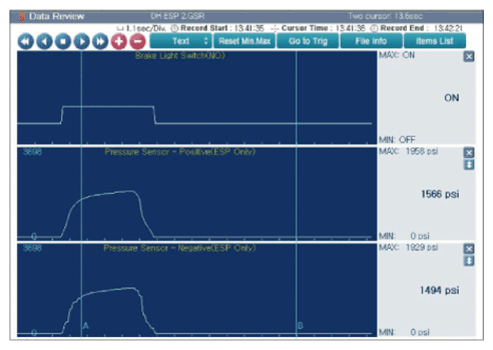

      Normal waveform:  The pressure sensor signal value will change according to the brake ON/OFF switch.

      G14625947Courtesy of HYUNDAI MOTOR AMERICA
